Aircraft Specifications
Performance| Endurance | 5 hours |
| Cruise Speed | 100 mph |
| Max Speed | 140 mph |
| Max Ceiling | 15,000 feet |
| Normal Cruise Altitude | 1000 - 10,000 feet |
| Range | 500 miles |
| Takeoff/Landing Speed | 55 mph (STOL-Capable) |
| Max Payload Capacity | 50 lbs total |
| Type | Single Engine, Tractor, V-Tail |
| Engine | 200cc 2 Cylinder (gasoline) |
| Construction | Modular, Compression Molded Composite |
| Landing Gear | Fixed Tricycle |
| Wingspan | 16'10" |
| Length | 10'3" |
| Height | 3'6" |
| Weight | 120 lbs (dry/no payload) / 200 lbs (wet/max payload) |
- Gapless flight control surfaces
- Inflight starter/generator (650 watts)
- Leading & Trailing Edge Flaps
- LED Navigation & Landing Lights
- Four Wing Payload Stations (optional)
- Forward Look Camera (FLC) + EO/IR Pan/Tilt/Zoom Camera
- IR Night Landing System (IRNLS) (optional)
- Centerline Fuselage Payload (25 lbs)
- Wing Payload Stations (4) (optional - 5 lbs each)
- Wing Fuel Tanks (optional)
Operational Capabilities

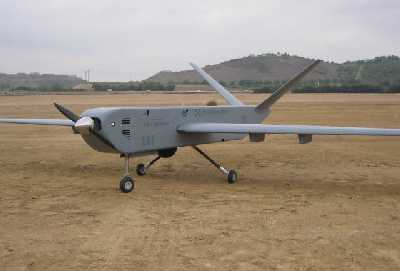

The GT-1500 RPAS is designed to fulfill multi-role applications in the short field takeoff and landing environment. The aircraft incorporates multiple high-lift devices and "all-composite" construction to enable flight operations in confined rural and urban areas.
With the high-lift devices stowed, the specially-designed laminar-flow airfoil allows the GT-1500 to cruise in excess of 100 mph, reducing the "base to on-scene" flight time and extending its range. The fixed landing gear provides robust capability in rough-field operations. The landing gear includes a rugged shock suspension system, steerable nosewheel and optional brakes on the main wheels. A retractable landing gear is available as an option.
The powerplant is an air-cooled, twin cylinder engine that incorporates an electric starter for inflight start and a generator system capable of 650 watts of inflight power. An internal 5 gallon fuel supply and wing station fuel can provide endurance exceeding 10 hours and 500 miles. On-site assembly, launch, and operation are accomplished with only 2 personnel in 30 minutes or less. The aircraft can launch and recover from semi-prepared surfaces.
NOTE: The performance specifications listed above are calculated. The GT-1500 RPAS is currently completing flight testing. Performance specifications will be validated when all flight testing is complete.
