Aircraft Specifications
Performance
Endurance: 2 hours Cruise Speed: 25 knots Max Speed: 50 kts Max Ceiling: 10,000 feet Normal Cruise Altitude: 1000 - 5,000 feet Range: 50 nautical miles Takeoff/Landing Speed: 15 knots STOL-Capable Max Payload Capacity: 2 lbs total
Airframe
Type: Single Engine, Tractor, V-Tail Engine: Electric Brushless Construction: Modular, Compression Molded Composite Landing Gear: Belly Skid Wingspan: 100" Length: 50" Height: 16" (top of V-Tail) Weight (no payload): 9.4 lbs Weight (max payload): 11.4 lbs Gapless flight control surfaces LED Navigation & Landing Lights Forward Look Camera (FLC) IR Night Landing System (IRNLS)(optional)
Payload Options
Wing-Mounted Payload Pods (1 lb Max each)
|

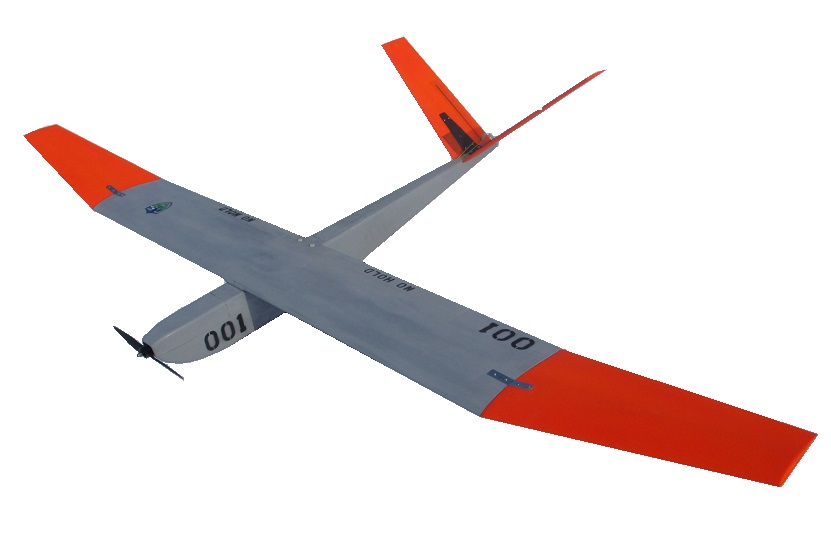

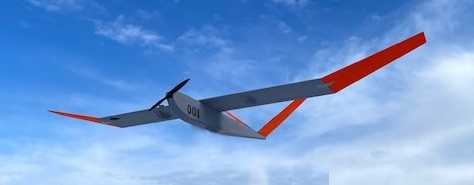

The GT-100HL RPAS is a fixed wing electric unmanned aircraft system designed for operations in austere environments where normal takeoff and landings are not possible. The aircraft incorporates a high lift, low drag airfoil and "all-composite" construction to enable flight operations in confined rural and urban areas. The low drag airfoil permits speeds in excess of 50 knots, reducing the "base to on-scene" flight time. The aircraft is easily hand-launched with the normal recovery a "belly-land" in very small areas. The aircraft can even be caught inflight for recovery by experienced operators. The powerplant is an electric outrunner motor. The onboard lithium polymer battery supplies continuous current to enable flight times of up to two hours with a range of approximately 50 nautical miles. On-site assembly, launch, and operation are accomplished with only a single person in less than 30 minutes. The aircraft utilizes high-intensity LED and/or IR lighting for night operations. Night landings may be performed using an optional portable IR night landing system.
|
